Plasma Igniter TYDQ-2

Plasma Igniter TYDQ-2

Composition: Includes the Plasma Igniter TYDQ-1, Ignition Cable TYL-1, along with either a plasma ignition nozzle or a plasma ignition gun

Application: Often found in labs or academic settings, this device can start ignition even where materials are challenging to light

Technical Features: The device shifts regular AC power into a stream of high-frequency, high-voltage current. This current travels down the ignition cable right up to the nozzle’s front tip, creating an electric discharge. When air is directed in, a plasma torch forms at the end—pretty interesting to watch in action

Technical Parameters:

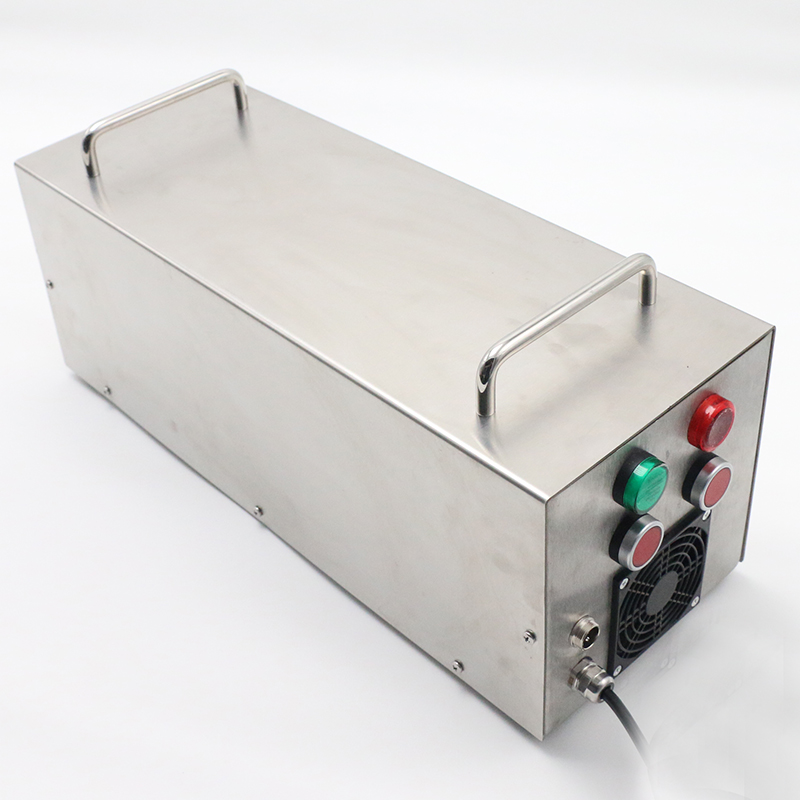

	Plasma Igniter TYDQ-2 Input: AC220V 10A Output: 10KV 20KHz Standard: Q/TYQ 01-2021

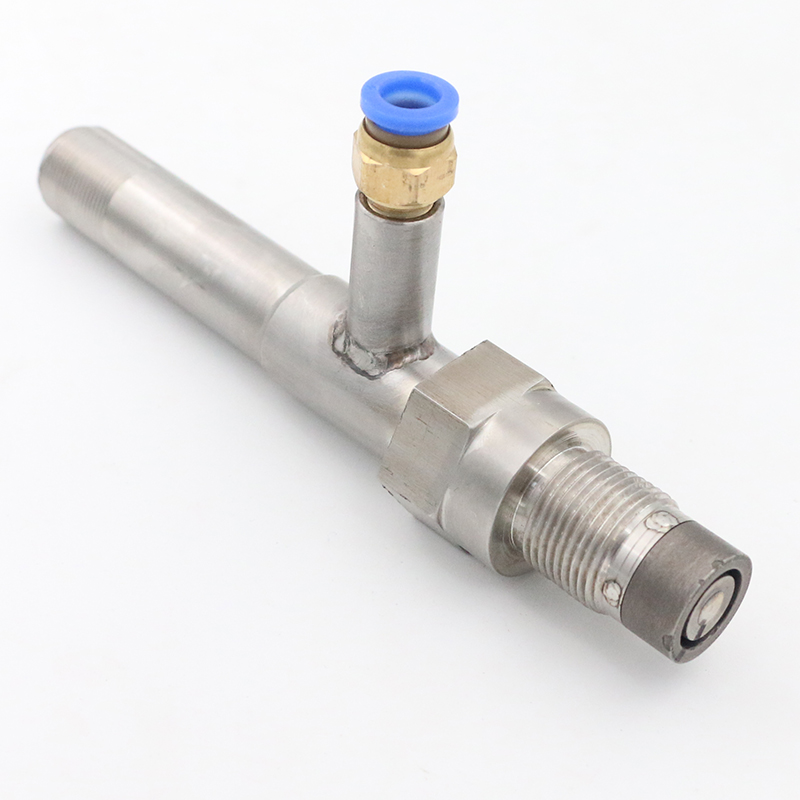

	Plasma Ignition Nozzle How it works: When activated, plasma forms at the front, creating a 50 mm plasma torch Design: The rear section has two ports—one for the power and one for compressed air Materials: Outside tube is stainless steel while the inside uses ceramic as an insulator

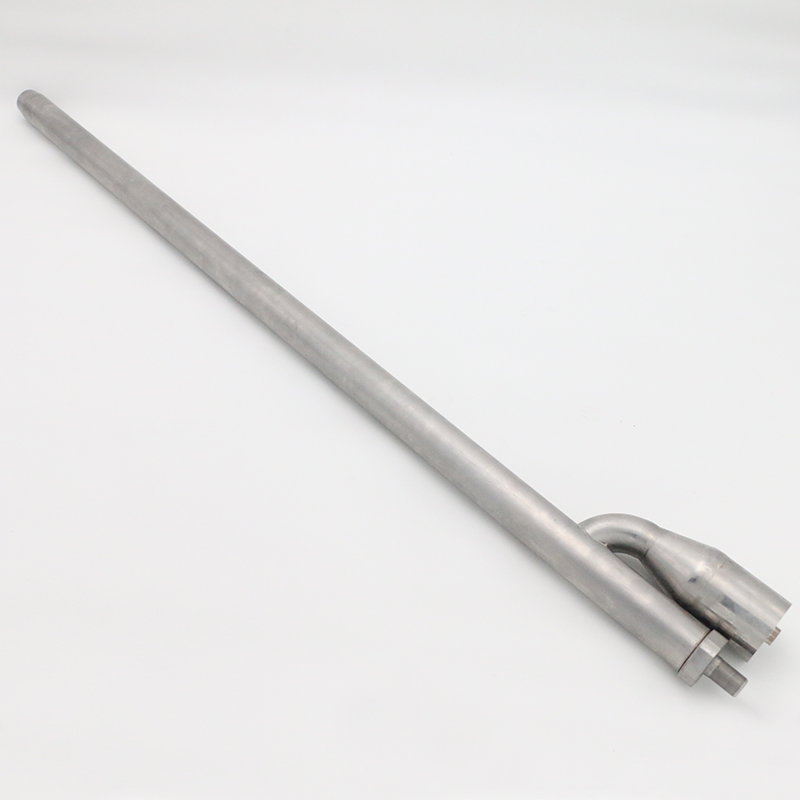

	Plasma Ignition Gun How it works: Gives a plasma torch at the front, but this one reaches a length of 150 mm Design: At the rear there are two interfaces for connecting power and a fan Materials: Stainless steel on the outside, ceramic inside—keeps things insulated
