High-Energy Igniter for Burner

Components include a High-Energy Igniter, a specialized ignition cable, a conductive rod, and an ignition gun designed for demanding environments

Applications often involve pairing these igniters with a range of gas or oil burners, allowing for direct ignition of fuel-air mixtures. Industrial furnaces across different fields rely on them for reliable performance

Technical Details

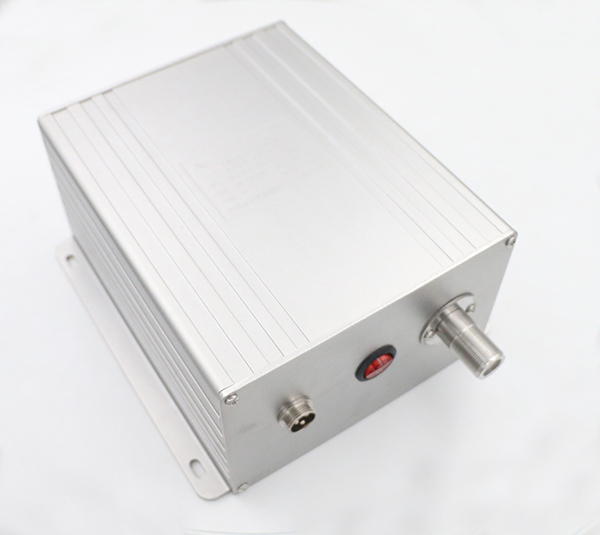

High-Energy Igniter

Wide voltage input is supported, covering 100V to 250V at 50Hz
Input current remains under 2A, which helps avoid excess heat
Energy storage measured at 12J or 20J. Plenty for consistent ignition
Delivers a stable high-voltage output at 2500V
Operates at a rapid spark frequency, up to 10Hz. Fast enough for most industrial needs
Seems built for durability, using full solid-state components and maintaining efficient discharge across circuits
Designed to function between -25 and 85 degrees Celsius
Tested for compliance with relevant technical standards

Ignition Cable

This cable carries high-voltage pulses directly to the ignition gun

Made from silicone rubber with tin-plated copper, it's flexible and tough

The core features a multi-strand structure, fully shielded in silicone, with a stainless steel braided layer for extra protection

Functions smoothly across a temperature window from -50 to 200 degrees Celsius

The length can be adjusted as needed, depending on your project requirements

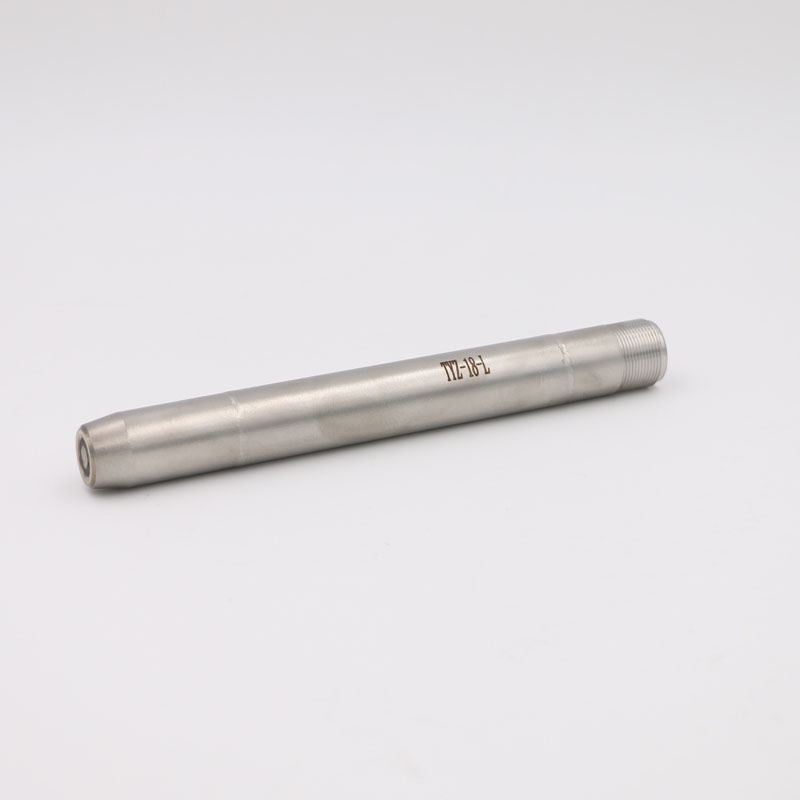

Ignition Gun

Engineered to release pulsed high-voltage DC, this gun creates a powerful arc at the surface of a specialized semi-conductive ceramic piece. Reliable, even with changes in environment

Uses alumina ceramic, stainless steel, silicone, and semiconductor ceramic in its build

The exterior is stainless steel with an internal seal for heat resistance, using high-temperature silicone

This piece manages temperatures from -60 to 800 degrees Celsius, withstanding up to 1300 degrees for short periods

Discharge voltage falls in the 700 to 1000V range
